- Low voltage single phase transformers
- Low voltage three phase transformers
- Inductors
- Reactors for starting motors
- Design
- Analysis calculation
- Building data base of all your projects
- Evaluate and print test report
- Print work instruction for workers
Introduction to automatic design of transformers.
TCAD is a software package for automatic design of :
TCAD was written after 5 years of work as consultant in transformers design.
TCAD is actually the better and ready to use solution for :
The software is friendly and easy to learn: you can insert voltage and power for all windings and TCAD give you all data: core, diameters, turns, weight, size copper and iron losses ..etc .
All parameters are settable as your standard tables. So you can set your current density and your working induction for all cores
TCAD is very useful if your firm is ISO9000 certified; with TCAD you can establish the better way to do a transformer and store theese parameters.
All similar transformers will be designed with the same criteria.
After realized prototype you can test it:
if the real test report differs from analysis calculations it means poor materials or mistakes.
Main index
HOW CAN YOU IMPROVE YOUR BUSINESS WITH TCAD
1 TCAD SAVE YOUR TIME.
Design time is very short; you can also retrieve previous designed card with automatic procedure2 TCAD SAVES COPPER AND IRON.
TCAD makes you able to evaluate faster and exactly copper and iron losses.So you can repeat design and optimize use of materials.
3 TCAD builds a complete data base of your designs
Have you had problems to retrieve an old card?Probably you have designed the same transformer in different mode ....
Since 1-01-1997 you have to build and record technical construction file ( TCF ) for all transformers. With TCAD you can easily create documentation compliant to CEE directive 73-23 and 93-68.
4 TCAD doesn't need engineer
You can leave repetitive designs and concentrate your time to focus of your businness5 TCAD ASSURES RIGHT DESIGN AND ANALYSIS CALCULATION
Oh sure .... you are able to make so! But how many time do you need to evaluate all your designs?6 TCAD CALCULATE AND PRINT TEST REPORT
Many customers ask you for copper and iron losses and voltage drop before buy transformer. They need this data for design their system.7 TCAD IS SOLD DIRECTLY FROM AUTHOR WHO CAN HELP YOU TO CUSTOMIZE THIS SOFTWARE
8 TCAD IS TESTED AND READY TO USE
9 TCAD CAN REALLY HELP YOU IN YOUR DESIGN WORK
Can you make your office works without computer ?Why you don't use computer also for your core business?
TCAD IS INEXPENSIVE ! You can buy whole package for only 1000$.
Samples of calculations

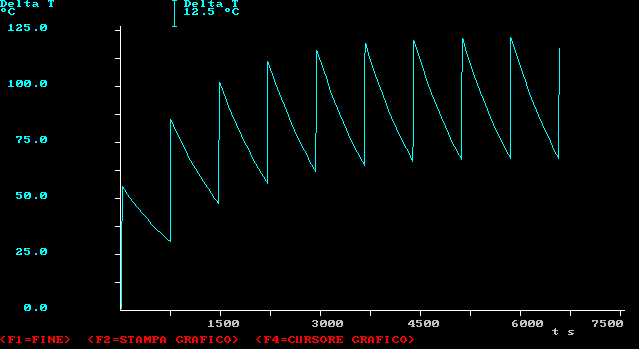

Graphic of temperature rise in a reactors for starting motor
EXAMPLE OF TEST REPORT CALCULATED AND PRINTED WITH TCAD
TEST REPORT
Dears CUSTOMER....Single phase transformer our type TM/ 100
Compliance to IEC989 STANDARD Insulation classe E
Nominal Power 200 VA Continuos working 50 to 60 Hz
Input voltage : 230 V 400 V
Output voltage :110V ( 150VA) 24V ( 50VA)
--------------------------------------------------------------------------------
PROTOTYPAL TESTS
NO LOAD TEST
Input voltage 400 V Input current 0.209 ALeak in the iron 33.5 W Power factor 0.40
SHORT CIRCUIT TEST
Short circuit voltage 6.4% Leak in the copper 14.0 W Power factor 0.99Efficiency (at nominal load and cosØ=1) : 80.81%
Voltage fall (at nominal load and cosØ=1) 6.35%
Apparent power for short time with voltage drop 5%
cosØ 0.3 A = 2945 VA cosØ 0.4 A = 2654 VA cosØ 0.5 A= 2431 VAcosØ 0.6 A = 2260 VA cosØ 0.7 A = 2130 VA cosØ 0.8 A= 2040 VA
HEATING TEST
Excesses temperature in the iron : 45°CExcesses temperature in the copper : 65°C
INSULATION'S RESISTANCE TEST
Among all the roller shuttered toward earth and among themselves > 100
Mohm.--------------------------------------------------------------------------------
ROUTINE TESTS
Output voltage without load :113.3V 24.7VInsulation breakdown test among all the roller shuttered toward earth and
among themselves 3 kV for 1 minute.
Your name your city, 10-10-97
Main index
Price list
1 : DESIGN OF SMALL SINGLE PHASE TRANSFORMERS
Single phase transformers from 1 VA to 6 kVA.
Max 10 primaries and 20 secondaries.
Print of working card and test report.
$ 200
2 : DESIGN COLUMS SINGLE PHASE TRANSFORMERS
Single phase transformers from 2 kVA to 50 kVA.
Max 5 primaries and 10 secondaries.
$ 100
1 : DESIGN OF THREE PHASE TRANSFORMERS
Three phase transformers from 20 VA to 100 kVA.
Max 5 primaries and 10 secondaries.
Print of working card and test report.
$ 250
4 : DESIGN OF SINGLE PHASE REACTORS
Single phase reactors from 5 VA to 6 kVA.
Print of working card and test report.
$ 200
5 : DESIGN OF THREE PHASE REACTORS
Three phase reactors from 20 VA to 50 kVA.
Print of working card and test report.
6 : DESIGN OF THREE PHASE REACTORS FOR STARTING MOTOR
For motors from 2 a 400 kW. $ 200
7: ANALISYS OF TEPERATURE RISE IN TRANSIENT
Analisys and graphic of temperature rise in electrical components such
as reactors for starting motor.
$ 200
ALL PACKAGE :
Main indexAltri prodotti
MARCATURA CE DEI TRASFORMATORI:
Progettazione,costruzione, collaudo, stesura del fascicolo tecnico.
Il libro illustra i requisiti fondamentali, le modalità di costruzione,
le prove di collaudo, la stesura della documentazione ai fini della
marcatura CE.
Dopo un’introduzione sulle basi legislative sono dettagliatamente
illustrate la preparazione del fascicolo tecnico di costruzione,
l'approntamento della sala prove, le modalità di prova con numerosi
esempi concreti.
Il testo è completo dei moduli necessari per una rapida stesura della
documentazione. E’ l’unico manuale sulla marcatura CE espressamente
dedicato ai produttori di trasformatori
Il manuale software è disponibile a L 340000.
